CommerceMessage Class Reference

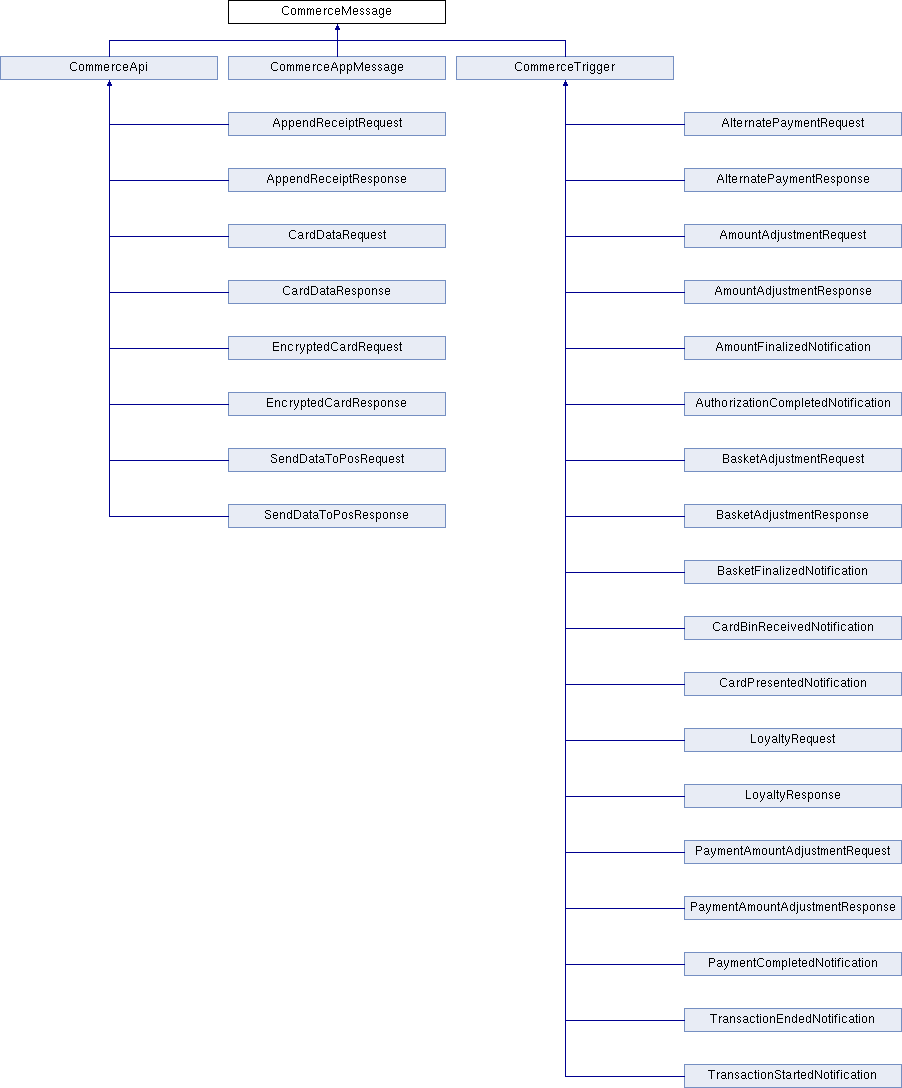

Inheritance diagram for CommerceMessage:

Public Member Functions
abstract String	getName ()
abstract String	getMessageType ()
final String	getHandle ()
final boolean	isTypeOfMessage (@NonNull final String type)
boolean	put (String key, Object value)
Object	get (String key)
List< String >	getKeys ()
Status	send (@NonNull final Context context)

Static Public Member Functions
static Intent	createIntentWithName (final String name)
static Intent	createIntentForMessage (final CommerceMessage message)
static int	getNumberOfReceivers (Context context, final CommerceMessage message)
static boolean	isResponseMessage (String name)
static boolean	isRequestMessage (String name)
static boolean	isMessageFromCPAndroid (String name)

Static Public Attributes
static final String	MESSAGE_TYPE_INTERAPP = "INTERAPP"
static final String	MESSAGE_TYPE_PAYMENTTRIGGER = "PAYMENTTRIGGER"
static final String	MESSAGE_TYPE_NONPAYMENTTRIGGER = "NONPAYMENTTRIGGER"
static final String	MESSAGE_TYPE_PAYMENTAPI = "PAYMENTAPI"
static final String	MESSAGE_TYPE_UNKNOWN = "UNKNOWN"
static final String	INTENT_ACTION_PREFIX = "com.verifone.commerce.intent.action."
static final String	INTENT_CATEGORY = "com.verifone.commerce.intent.category.CP_MESSAGE"
static final String	INTENT_EXTRA_HANDLE = "com.verifone.commerce.intent.extra.HANDLE"
static final String	INTENT_EXTRA_PAYLOAD = "com.verifone.commerce.intent.extra.PAYLOAD"
static final String	CP_JSON_KEY_TRANS_AMOUNT = "Trans_Amount"
static final String	CP_JSON_KEY_CURRENCY = "Currency"

Protected Member Functions
void	populateMessageFromJson (@NonNull final JSONObject jsonObject)
void	setHandle (@NonNull final String handle)
JSONObject	getJsonObject ()
void	setJsonObject (@NonNull final JSONObject jsonObject)
abstract String	getAsJsonString ()
String	getCpAppId ()
void	setCpAppId (String cpAppId)
String	getCpAppVersion ()
void	setCpAppVersion (String cpAppVersion)

Detailed Description

This message provides the foundation for all messages sent between Android applications and the Terminal applications.

The SDK provides a Builder class, as described below, which builds the appropriate Message class from the Intent. Any extra key/value pairs in the payload that are not a part of the defined message must still be included, and are only exposed through the free-form functions described in Commerce Message.

Definition at line 36 of file CommerceMessage.java.

Member Function Documentation

get()

Object get

(

String

key

)

Retrieves a specific object from the payload. This is primarily useful when storing custom values in the messages.

Parameters

key	The key to refer to the information. This should be developer-specific to avoid possible data conflicts.

Returns

The value stored for the key. See put(String key, Object value) for more information.

Definition at line 316 of file CommerceMessage.java.

getHandle()

final String getHandle

(

)

A unique identifier for a sequence of messages, allowing a response to be linked to a request.

Definition at line 245 of file CommerceMessage.java.

getKeys()

List<String> getKeys

(

)

Retrieves all custom keys from the payload. This is primarily useful when storing extra context in the messages.

Returns

All of the custom keys in the payload.

Definition at line 333 of file CommerceMessage.java.

getMessageType()

abstract String getMessageType ( )

abstract

Indicates the type of message to better enable message routing within a receiving application. This will only be set by the Builder, and readable afterwards. This is derived from the name/notification ID.

getName()

abstract String getName ( )

abstract

The name of the message, useful for routing the message within an application.

isMessageFromCPAndroid()

static boolean isMessageFromCPAndroid ( String  name )

static

Detects if message goes from android CP app outside: responses for triggers and requests for APIs

Definition at line 280 of file CommerceMessage.java.

isTypeOfMessage()

final boolean isTypeOfMessage

(

@NonNull final String

type

)

Another way of handling message types. Refer to getMessageType() for more information.

Definition at line 253 of file CommerceMessage.java.

populateMessageFromJson()

void populateMessageFromJson ( @NonNull final JSONObject  jsonObject )

protected

Optional method, called when building the message from an intent.

Definition at line 389 of file CommerceMessage.java.

put()

boolean put	(	String	key,
		Object	value
	)

Allows putting custom values in the payload, which can provide additional context.

Parameters

key	The key to refer to the information. This should be developer-specific to avoid possible data conflicts.
value	The value to transmit. This value must be able to be added to a JSON object.

Returns

True if the value was successfully added for the key, false if the addition failed.

Definition at line 294 of file CommerceMessage.java.

send()

Status send

(

@NonNull final Context

context

)

Sends the message.

Returns

A Status object indicating that the underlying service received the call and will make an attempt to deliver, or an error if there are immediate issues detected.

Definition at line 348 of file CommerceMessage.java.

Member Data Documentation

MESSAGE_TYPE_INTERAPP

final String MESSAGE_TYPE_INTERAPP = "INTERAPP"

static

Messages communicating with a companion application and the corresponding responses.

Definition at line 41 of file CommerceMessage.java.

MESSAGE_TYPE_NONPAYMENTTRIGGER

final String MESSAGE_TYPE_NONPAYMENTTRIGGER = "NONPAYMENTTRIGGER"

static

Triggers created by the Terminal Payment application outside of the context of a transaction and the corresponding responses.

Definition at line 51 of file CommerceMessage.java.

MESSAGE_TYPE_PAYMENTAPI

final String MESSAGE_TYPE_PAYMENTAPI = "PAYMENTAPI"

static

Messages created by an Android application and sent to the Terminal Payment application within the context of a transaction and the corresponding responses.

Definition at line 56 of file CommerceMessage.java.

MESSAGE_TYPE_PAYMENTTRIGGER

final String MESSAGE_TYPE_PAYMENTTRIGGER = "PAYMENTTRIGGER"

static

Triggers created by the Terminal Payment application within the context of a transaction and the corresponding responses.

Definition at line 46 of file CommerceMessage.java.

MESSAGE_TYPE_UNKNOWN

final String MESSAGE_TYPE_UNKNOWN = "UNKNOWN"

static

Allows for future extensions.

Definition at line 60 of file CommerceMessage.java.

---

The documentation for this class was generated from the following file:

• src/main/java/com/verifone/commerce/CommerceMessage.java
